An activated carbon rotary kiln is one piece of equipment with a high utilization rate for processing activated carbon. It is high-end equipment filled with advanced technology. An activated carbon rotary kiln has so many advantages such as advanced technology, simple operation, low carbon discharge, large production capacity, and high work efficiency.
AGICO, a rotary kiln manufacturer from China, has decades of experience in the design and production of rotary kilns and activated carbon equipment. The new energy-saving activated carbon rotary kiln independently designed by AGICO can be used for carbonization, activation, and regeneration of activated carbon in the activated carbon plant. In addition to rotary kiln equipment, AGICO can also provide you with overall solutions and related auxiliary equipment such as the carbonization plant, activation plant, activated carbon regeneration plant, etc.
Activated Carbon Rotary Kiln Investment Environment
Activated carbon rotary kiln is worth investing. The development of society and the improvement of people’s environmental requirements determine that activated carbon will play a significant role in the environmental protection industry. The prospect of an activated carbon market is considerable. Therefore, keeping up with the national side, keeping abreast of the people’s life vision, and advancing with the times, aka activated carbon rotary kiln, will certainly make you win in the strategic market.
Activated Carbon Rotary Kiln Working Process
First, the raw materials are subjected to carbonization. Then, the carbonized materials are sieved to remove fine particles smaller than 2 mm, ensuring that the moisture content does not exceed 15%. Next, the material is fed into the elevator bin and lifted to the top feeder. From there, it is uniformly fed into the rotary kiln through a variable frequency feeder. Before feeding, the kiln temperature must reach above 800°C. At this point, an appropriate amount of oxygen is injected into the kiln using a fan, followed by the introduction of steam for material activation. The steam needs to fully penetrate, with 4 tons of steam required for every ton of finished activated carbon. It is important that this steam is not used as diffusion steam, as this would result in high carbon loss rates and reduced efficiency and quality.
As the kiln rotates, the material gradually enters the carbonization preheating zone. When the material temperature reaches approximately 800°C, it enters the activation zone. The material reacts with the steam, causing the temperature to quickly rise to around 900-1050°C. When the material enters the cooling zone, it passes through the kiln discharge pipe into the discharge section, where the temperature is approximately 500-600°C. As it moves through the discharge pipe and cools down to 200°C, the material automatically slides out of the kiln, completing the series of reactions within the kiln.
Kiln Operation Parameters
| Product Standard(m） | Kiln Size | Motor Power(kW) | Gross Weight(t) | Remarks | ||||
| Diameter(m) | Length(m) | Inclination(%) | Yield(t/d) | Rotate Speed(r/min) | ||||
| Φ2.5×40 | 2.5 | 40 | 3.5 | 180 | 0.44-2.44 | 55 | 149.61 | |
| Φ2.5×50 | 2.5 | 50 | 3 | 200 | 0.62-1.86 | 55 | 187.37 | Decomposition kiln outside the kiln |
| Φ2.5×54 | 2.5 | 54 | 3.5 | 280 | 0.48-1.45 | 55 | 196.29 | |
| Φ2.7×42 | 2.7 | 42 | 3.5 | 320 | 0.10-1.52 | 55 | 198.5 | Decomposition kiln outside the kiln |
| Φ2.8×44 | 2.8 | 44 | 3.5 | 450 | 0.437-2.18 | 55 | 201.58 | |
| Φ3.0×45 | 3 | 45 | 4 | 500 | 0.5-2.47 | 75 | 201.94 | Decomposition kiln outside the kiln |
Activated Carbon Rotary Kiln Advantages

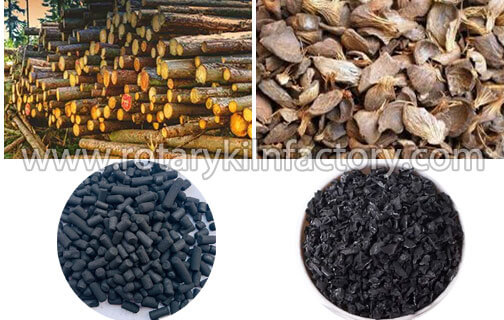

Activated carbon rotary kiln can process a wide range of raw materials, coconut shells, wood, nut shell, coal, and other raw materials, after carbonization, activation and other processes can get high-quality activated carbon products. Activated carbon rotary kiln has obvious advantages in various activated carbon production, and is the first choice for various activated carbon manufacturers.
The activated carbon rotary kiln is an environmentally friendly machine. Activated carbon rotary kiln has the characteristics of environmental protection, energy-saving, mechanization, and a high degree of automation (PLC bus control).
Activated carbon rotary kiln turns waste into treasure. The activated carbon rotary kiln adopts modern new burner technology, which can fully use cheap energy, especially flammable gas.
Activated carbon rotary kiln is an ideal kiln type. Activated carbon rotary kiln line has advantages of well adaptive raw materials and fuel, simple maintenance, and low energy consumption.
Activated carbon rotary kiln is an advanced sealing technology. The equipment adopts advanced kiln head and tail sealing technology, which has remarkable features such as stable operation and high output.
Activated Carbon Rotary Kiln Price Factor
They have activated carbon rotary kilns of the manufacturer’s character. In general, direct-selling manufacturers are cheaper than other small processing plants and second- and third-tier dealers, because the former does not require intermediate costs; Famous branded manufacturers are at a higher price than the average manufacturer because the former has a specific brand effect.
Activated carbon rotary kiln’s production cost. The same high-quality equipment offers different prices because the production process of some manufacturers is more complicated. There is a certain cost of waste, so the equipment price is relatively higher.
Activated carbon rotary kiln’s steel price. The main raw material of activated carbon rotary kiln is steel. Therefore, the price change of steel will directly affect the price of equipment. The great instability of the steel market will fluctuate the price of equipment.
