Cow Dung Drying Machine
Cow Dung Dryer Specification
Production capacity: 1-16 t/h
Supported fuels: Steam waste heat, coal, oil, gas, and other fuels.
Applicable materials: Suitable for drying cow manure, chicken manure, pig manure, as well as urea, ammonium nitrate, and other inorganic and compound fertilizers.
Send your thoughts directly
In modern agricultural production, the use of organic fertilizers not only helps to improve soil fertility but also promotes the healthy growth of crops. Animal manure is rich in nutrients and trace elements and is a good organic fertilizer. The development of animal manure as a compound organic fertilizer can not only turn waste into treasure but also reduce environmental pollution and prevent the spread of diseases, with good economic and social benefits. Cow dung, a high-quality organic fertilizer raw material, is favored by farmers and environmentalists for its rich nutrients and natural soil improvement effects. However, in converting cow dung into efficient and easy-to-use granular organic fertilizer, the drying process is crucial.

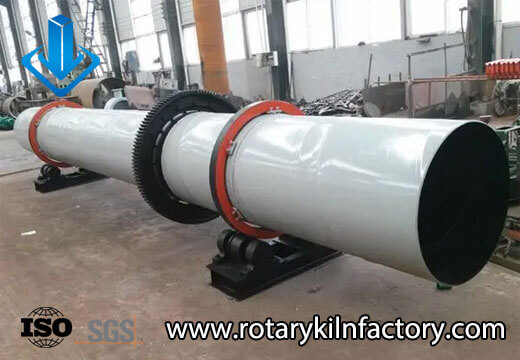

Cow dung drying machine is the core equipment in the organic fertilizer production process. It uses efficient drying technology to quickly reduce the moisture content of cow dung particles so that they can meet appropriate storage and use standards. The drying process not only significantly improves the quality and stability of the fertilizer, but also extends its shelf life and prevents clumping and mildew.
Working Principle of Cow Dung Drying Machine

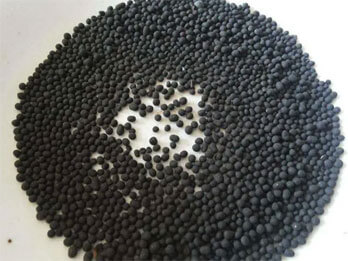

Cow dung drying machine is a piece of equipment specially used for drying and processing granulated cow dung. The device evaporates the water in the cow dung pellets, significantly reducing their volume and weight, and making them easier to store and transport. The cow dung dryer adopts a hot air circulation drying method, using a heating system and a circulating fan to evaporate the moisture in the cow dung quickly. At the same time, the equipment also has a sterilization function during the drying process, which can effectively reduce the presence of bacteria and viruses in cow manure and reduce the risk of disease transmission. Cow dung drying machines are widely used in the fields of animal husbandry and agriculture. They can efficiently process cow dung, reduce environmental pollution, and provide farmers and farmers with convenient cow dung management solutions.
The working principle of the cow manure dryer is to place the already granulated cow manure into the equipment, where it is dried through heating and ventilation. Specifically, the cow manure dryer consists of the following parts:
Heating System: Utilizes energy sources such as gas or electricity to generate heat, which is transferred to the cow manure pellets through a heat exchanger, causing the moisture inside to evaporate.
Ventilation System: Comprising fans and other equipment, it expels the evaporated water vapor and hot air from the machine, ensuring the interior remains dry and well-ventilated.
Conveying System: Includes the feed inlet and discharge outlet. Using conveyor belts or screw conveyors, it transports the cow manure pellets from the feed inlet to the discharge outlet, ensuring a continuous and efficient drying process.
Control System: Equipped with temperature, humidity, and operational status monitoring devices, it allows for real-time adjustment and monitoring of the equipment’s operating parameters, ensuring stable and efficient operation of the cow manure dryer.
Through the coordinated work of these systems, the cow manure pellets are evenly heated inside the equipment, allowing moisture to evaporate and be expelled quickly, achieving the desired drying effect. This facilitates subsequent storage, transportation, and utilization.
| Model | Inclination angle(°) | Rotation speed(r/min) | Capacity(t/h) | Inlet temperature(℃) | Motor power(kw) |
|---|---|---|---|---|---|
| Ф0.8*8m | 2-5 | 4.7 | 1-1.5 | <700 | 5.5 |
| Ф1*10m | 2-5 | 4.7 | 1.5-2 | <700 | 7.5 |
| Ф1.2*12m | 2-5 | 4.7 | 2-2.5 | <700 | 11 |
| Ф1.5*12m | 2-5 | 5 | 4-6 | <700 | 15 |
| Ф1.5*15m | 2-5 | 5 | 5-7 | <700 | 15 |
| Ф1.8*15m | 2-5 | 5 | 7-10 | <700 | 18.5 |
| Ф2*20m | 2-5 | 3.9 | 8-14 | <700 | 22 |
| Ф2.2*22m | 2-5 | 3.2 | 12-16 | <700 | 37 |
Want More Details？
Do you want to know more details about the cow manure dryer? Try clicking the button to leave a message for our engineer now!
Wide Applications of Cow Dung Drying Machine
Drying of Organic Fertilizers

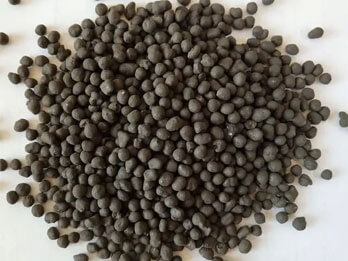

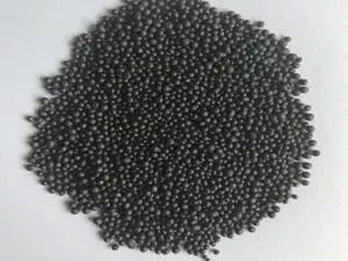

Besides being used for drying cow manure pellets, cow manure dryers can also be applied to drying other types of organic fertilizers, such as chicken manure and pig manure.
Drying of Inorganic and Compound Fertilizers

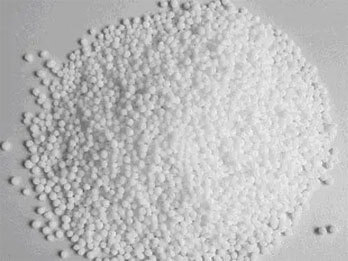

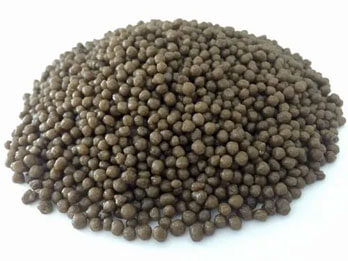

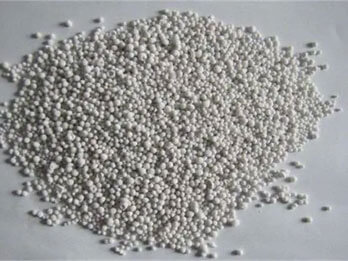

With appropriate adjustments and optimizations, cow manure dryers can also be used for drying some inorganic and compound fertilizer pellets, taking into account the characteristics of these materials. Inorganic fertilizers include nitrogen fertilizers (such as urea and ammonium nitrate), phosphate fertilizers (such as superphosphate and diammonium phosphate), potassium fertilizers (such as potassium chloride and potassium sulfate), as well as nitro compound fertilizers and potassium sulfate compound fertilizers.
The Importance of Drying in Fertilizer Pellet Production
Whether it’s organic fertilizers like cow manure and chicken manure, or inorganic fertilizer pellets like urea and ammonium nitrate, drying is essential in the production process to ensure product quality, storage, and usability.
Improving Stability and Storability: Drying reduces the moisture content, preventing fertilizer pellets from absorbing moisture and clumping during storage and transportation.
Enhancing Pellet Strength: Dried fertilizer pellets become harder and less prone to breaking, making them easier to apply using machinery.
Increasing Fertilizer Efficiency: The drying process helps maintain the stability of the nutrients in the fertilizer, ensuring effective application and better crop yield.
Economic and Environmental Benefits of Using Cow Dung Organic Fertilizer
Impact of Using Cow Manure Organic Fertilizer on Crop Yield
The use of cow manure organic fertilizer can significantly increase crop yields. Studies have shown that after applying cow manure organic fertilizer, soil organic matter content increases and soil structure improves, thereby enhancing crop growth rate and yield. For instance, wheat and corn have shown an average yield increase of approximately 15% to 20% after application.
Economic Benefits Analysis
The increased yield directly translates into economic benefits for farmers. Research data indicates that farmers using cow manure organic fertilizer see an average increase in income of about 1000 to 1500 Chinese Yuan per hectare. This is mainly due to the fertilizer not only boosting yields but also reducing the use of chemical fertilizers, thus lowering agricultural input costs.
Environmental and Social Benefits
Cow manure organic fertilizer not only benefits economically but also positively affects the environment and society. Using organic fertilizers reduces dependence on chemical fertilizers, lowering the risk of environmental pollution and improving soil quality, promoting sustainable agricultural development. Additionally, promoting cow manure organic fertilizer encourages the integration of animal husbandry and agriculture, enhancing ecological benefits and quality of life in rural areas.
