Electromagnetic Heated Rotary Kiln
In traditional industries, coal-fired rotary kilns and gas-fired rotary kilns use conventional heat sources for heating, which results in high energy consumption, low efficiency, and inadequate environmental performance. With the growing emphasis on energy conservation and environmental protection in recent years, electromagnetic heated rotary kiln technology has rapidly advanced, similar to electric heating rotary kilns and other eco-friendly kilns. It is now widely used across various industries.
Principle of Heating in Electromagnetic Rotary Kilns
The core technology of electromagnetic rotary kilns is based on the principle of electromagnetic induction heating, which enables efficient and precise thermal energy transfer through the action of a high-frequency electromagnetic field. Specifically, this heating method uses electromagnetic induction to generate a high-frequency electromagnetic field within the rotary kiln. The electromagnetic field induces eddy currents within the material, which are then converted into heat energy, allowing materials such as limestone to heat up and undergo the calcination process rapidly.
In practical applications, AGICO’s electromagnetic rotary kiln can reach operating temperatures of up to 1100°C. This high-temperature heating not only ensures thorough calcination of the materials inside the kiln but also guarantees efficient thermal energy transfer. The introduction of electromagnetic heating technology significantly enhances the uniformity and precision of the heating process, avoiding common issues of temperature fluctuations and uneven heat distribution found in traditional heating methods.
Through this advanced heating method, the electromagnetic rotary kiln not only effectively addresses environmental concerns by reducing energy waste and harmful gas emissions but also significantly improves product quality. Whether it is in precisely controlling product temperature or enhancing production efficiency, this technology demonstrates unparalleled advantages, providing a more reliable and efficient solution for industrial production.
Electromagnetic Rotary Kilns are Suitable for a Variety of Applications
Electromagnetic rotary kilns are primarily used for high-temperature industrial heating, material calcination, drying and dewatering, rare metal refining, and purification of mixtures. Additionally, they are also suitable for the heating treatment of materials that are sensitive to high temperatures, flammable, explosive, or volatile.
Chemical Industry
Metal powders, clay, diatomaceous earth, kaolin, cement clinker, aluminum hydroxide, chrome ore sand, active lime, lightly burned dolomite, quartz sand, magnesium hydroxide, lithium ore, zinc oxide, magnesium oxide, bauxite, dolomite, titanium dioxide, expanded clay aggregate, lightweight calcium carbonate, active bleaching clay, magnetic powder, graphite, inorganic slurry, ceramic clay, lime slurry, ore slurry, phosphate slag, and bauxite residue from aluminum plants.
Drying Industry
Alfalfa drying, distillers’ grain drying, straw drying, sawdust drying, marigold drying, wood chip drying, ginkgo leaf drying, traditional Chinese medicine drying, beer grain drying, liquor grain drying, potato starch residue drying, cassava residue drying, malt drying, melon seed drying, sugarcane bagasse drying, hawthorn drying, canola cake drying, vegetable drying, etc.
Mining Industry
Ore, slag, coal, low-grade iron ore, roasted iron ore, nickel-iron ore, high-alumina bauxite, magnesite, nickel ore, chrome ore, etc.
Metallurgical Industry
Copper, nickel, cobalt, gold, silver, aluminum, magnesium, titanium, lithium, zinc, tin, tungsten, molybdenum, zirconium, iron, chromium, etc.
Agriculture, Feed, and Fertilizer Industry
Straw, forage, leaves, fishmeal, corn paste, starch residue, distillers’ grains, medicinal residues, fruit residues, soy sauce residue, sugarcane bagasse, peat, organic compound fertilizers, sludge, seafood waste, food factory waste, organic fertilizers, inorganic fertilizers, phosphate sulfate.
Advantages of Using Electromagnetic Heated Rotary Kilns for Heating Materials
Extremely high thermal efficiency: Our electromagnetic heated rotary kiln achieves up to 95% thermal efficiency, significantly enhancing energy utilization and saving substantial energy costs.
Rapid temperature adjustment: The kiln offers extremely fast heating and cooling speeds, effectively overcoming the inertia heating issues of traditional equipment, and ensuring quick response and precise control.
Uniform heating: The design of the electromagnetic heated rotary kiln ensures uniform heating of the entire chamber, avoiding uneven heat distribution and achieving optimal heating results for every part of the material.
Long service life: This electromagnetic heated rotary kiln boasts a service life of over 15 years with minimal maintenance requirements, reducing long-term operational maintenance costs and providing your business with reliable, durable performance.
Multiple frequency options: We offer various frequency options, including low-frequency, medium-frequency, high-frequency, and ultra-high-frequency, to meet the specific heating needs of different applications.
Comprehensive safety protection: The kiln is equipped with multiple safety features, including protection against dry burning and freezing, ensuring safe and reliable operation throughout its use.
We give you quality and service that goes far beyond anyone else
By choosing our electromagnetic heated rotary kiln, you prefer world-proven quality at a reasonable price.
AGICO Electromagnetic Rotary Kiln has Successfully Completed Over 100+ Projects

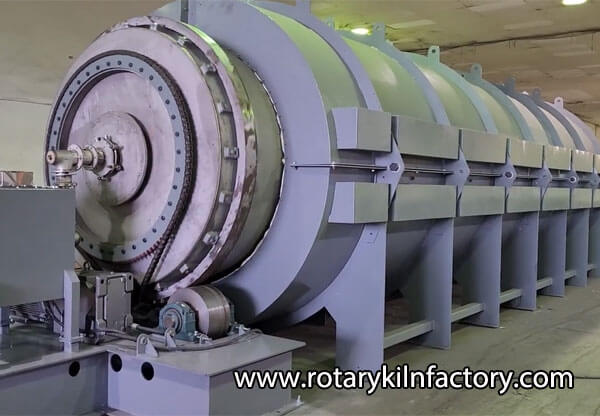

Electromagnetic Rotary Kiln Limestone Calcination Efficiency Improvement Project
| Project Location | Shanxi, China |
| Raw material | limestone |
| Installed Power | 6000 kW |
| Maximum Temperature in the Kiln | 1100°C |
Project Background
A limestone processing plant in Shanxi has long focused on the development and utilization of limestone resources. However, the traditional limestone calcination process faces issues such as high energy consumption, severe pollution, and inefficiency, which have significantly restricted the plant’s further development. With increasingly stringent national environmental standards and the growing market demand for high-quality limestone products, the plant urgently needed to introduce a more efficient and environmentally friendly calcination technology to enhance product quality, reduce energy consumption, and achieve sustainable production growth.
Solution
To address the aforementioned issues, AGICO proposed a limestone calcination solution centered around an electromagnetic heating system. This solution employs advanced electromagnetic heating technology, generating eddy currents through a high-frequency alternating magnetic field to heat the limestone ore internally, resulting in efficient and uniform heating. The electromagnetic heating system boasts a powerful output of 6000 kW and can achieve temperatures up to 1100°C within the kiln, fully meeting the requirements for limestone calcination.
Effectiveness Assessment
After a period of trial operation, the electromagnetic heated rotary kiln has achieved remarkable results at the limestone processing plant in Shanxi.
Firstly, calcination efficiency has significantly improved, with notable enhancements in the reduction and impurity decomposition of limestone. The purity of calcium oxide and calcium hydroxide has also increased substantially.
Secondly, energy consumption has been markedly reduced. Compared to traditional rotary kiln calcination methods, the energy usage of the electromagnetic rotary kiln has decreased by nearly 30%.
Finally, the environmental benefits are substantial. The electromagnetic heating process produces no smoke or dust emissions, effectively improving the working environment and reducing pollution in the surrounding area.

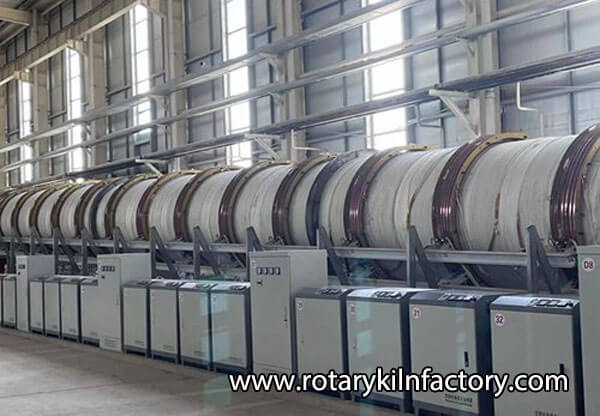

Electromagnetic Rotary Kiln Gold Ore Calcination Project
| Project Location | Zhangjiakou, China |
| Raw material | Gold ore |
| Installed Power | 300 kW |
| Maximum Temperature in the Kiln | 900°C |
Project Background
With the continuous advancement in gold mining technology, the requirements for calcination and purification of gold ore have become increasingly stringent. A gold ore calcination plant located in Zhangjiakou has been focused on improving the efficiency of gold ore calcination and the purity of gold. However, the traditional rotary kiln calcination process faces challenges such as high energy consumption and unstable temperature control, which significantly affect the processing effectiveness and economic benefits of the plant. Consequently, the plant urgently needed to introduce a more efficient, energy-saving, and environmentally friendly calcination rotary kiln to meet the rising production demands and environmental standards.
Solution
To address the challenges of gold ore calcination, AGICO, with its extensive experience in electromagnetic heating technology, customized an advanced electromagnetic heated rotary kiln system for the gold ore plant. This system features a total installed power of 300 kW and can achieve a maximum temperature of up to 900°C, fully meeting the high-temperature calcination requirements for gold ore. Utilizing electromagnetic heating technology, the rotary kiln system allows for precise control of the calcination temperature, significantly improving calcination efficiency while effectively reducing energy consumption, thus providing the gold ore plant with a highly efficient and energy-saving solution.
Effectiveness Assessment
After implementing the high-temperature calcination technology, the plant has achieved significant improvements:
Significant Increase in Gold Ore Purity: The purity of the gold ore has been substantially enhanced through high-temperature calcination, leading to a notable improvement in the overall quality of the product.
Significant Reduction in Energy Consumption: Energy consumption during the calcination process has been effectively reduced, which has controlled production costs and optimized economic benefits.
Increased Production Efficiency: Production efficiency has been significantly improved, with a considerable reduction in production cycles, thereby enhancing the plant’s competitiveness in the market.

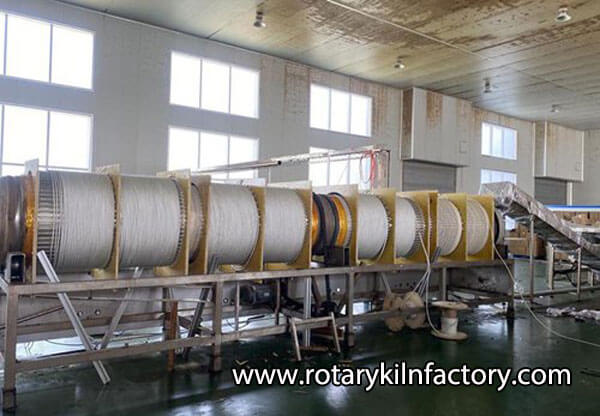

Electromagnetic Rotary Kiln Edible Salt Drying Project
| Project Location | Shandong, China |
| Raw material | Edible salt |
| Maximum Temperature in the Kiln | 900°C |
Project Background
Shandong Province is a major producer of edible salt in China, and the performance requirements for drying equipment in the salt production process are extremely stringent. Traditional drying methods face issues such as high energy consumption, low efficiency, and imprecise temperature control, all of which negatively impact the quality and yield of edible salt. Particularly in drying moisture from salt raw materials, there is an urgent need for a drying solution that can reliably and efficiently achieve high temperatures. Therefore, developing a new, efficient drying solution has become an urgent issue for salt production enterprises.
Solution
To meet the drying equipment requirements of edible salt production enterprises, AGICO proposed a solution utilizing an electromagnetic heating rotary kiln. This kiln leverages advanced electromagnetic heating technology, offering benefits such as high efficiency, environmental friendliness, and safety. By precisely controlling the heating temperature and power, the electromagnetic rotary kiln can rapidly elevate the temperature to 900°C, efficiently removing moisture from salt raw materials. Additionally, compared to traditional drying methods, electromagnetic heating technology provides higher thermal efficiency and more uniform temperature distribution, ensuring consistent and reliable drying results.
Effectiveness Assessment
Since the implementation of the electromagnetic heated rotary kiln, the drying efficiency of the edible salt production enterprise has significantly improved. The kiln can quickly raise the temperature to 900°C, greatly enhancing the drying efficiency. Thanks to the efficiency of electromagnetic heating technology, the energy consumption of the drying system has been substantially reduced, saving the company significant energy costs. Moreover, the quality of the dried edible salt is stable, with moisture content meeting industry standards, leading to widespread market recognition of the product quality.
