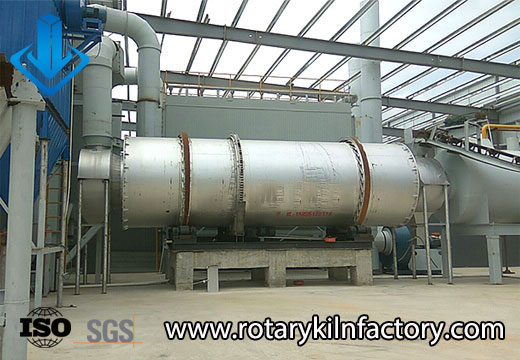

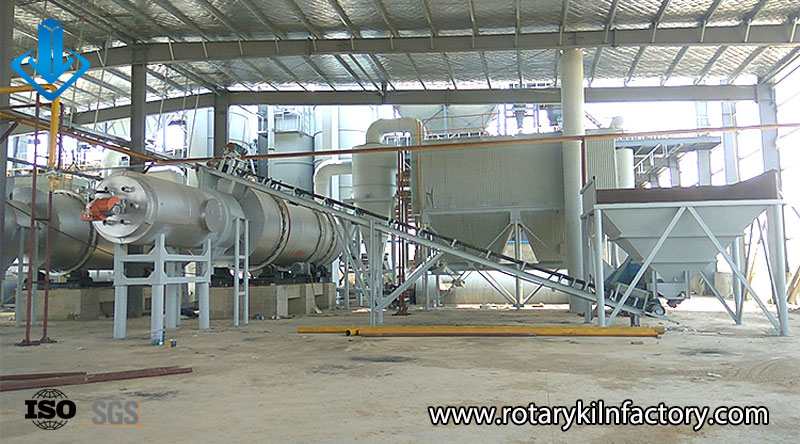

Silica Sand Dryer
Silica Sand Dryer Specification
Production capacity: 300-3000 t/d
Raw material moisture 20%-30%, output moisture ≤5%
Supported fuels: coal, natural gas, liquefied gas, biomass and other fuel forms.
Applicable materials: suitable for silica sand, quartz sand, building sand, mineral powder, fracturing sand, glass sand, etc.
Send your thoughts directly
Silica sand is a natural mineral of high-purity silicon dioxide (SiO₂) particles. Its characteristics of uniform particle size and low impurity content make it widely used in industrial production. Due to these unique characteristics, silica sand has become an indispensable raw material in many industrial fields.
Application fields of dry silica sand
Dry silica sand dried by silica sand dryer has met the requirements of subsequent applications in many industrial fields regarding water content, purity, particle size distribution, and impurity content. It can be used as an important raw material for production in these application fields. The main application fields of dry silica sand include glass manufacturing, the foundry industry, the ceramic industry, building materials, water treatment, etc.
The Necessity of Using a Silica Sand Dryer to Dry Silica Sand
During the silica sand processing process, silica sand drying requires the use of a professional silica sand dryer. Silica sand drying not only removes moisture but also ensures its high purity, stability, and adaptability to various subsequent industrial needs. It has become an indispensable step in modern silica sand production.
1. Remove moisture
Silica sand often absorbs a lot of moisture during natural mining and cleaning. This moisture not only increases the weight of silica sand but also affects its subsequent processing and use. Therefore, drying, as a key link in the silica sand production process, can effectively remove excess moisture and ensure that the moisture content of silica sand meets the requirements of downstream production processes. Through dehumidification treatment, the performance of silica sand can be guaranteed to be stable, providing a reliable foundation for the next step of processing.
2. Improve purity
During the mining and washing process of silica sand, the presence of water may bring in some impurities. The drying process not only helps to remove moisture, but also in some cases can further remove tiny impurities attached to the surface of the sand particles. In this way, the dried silica sand can maintain a higher purity and meet the demand for high-quality raw materials, especially in precision manufacturing and high-end applications, where the improvement of purity is crucial.
Want More Details？
Do you want to know more details about the silica sand dryer? Try clicking the button to leave a message for our engineer now!
3. Improved transportation and storage performance
Wet silica sand is prone to caking during transportation, causing transportation difficulties and storage problems. By drying, the moisture of silica sand is removed, so that it remains loose and easy to transport in batches and store for a long time. Dried silica sand not only reduces the possibility of caking but also reduces the quality problems caused by moisture during transportation, ensuring its stability under different storage environments.
4. Support downstream processes
Some industries that have extremely strict requirements on the quality of silica sand, such as glass manufacturing and casting processes, require the moisture content of the raw materials to be extremely low. Excessive moisture not only affects the quality of the product but may also cause instability in the production process. Therefore, the silica sand drying process has become a necessary step to ensure the smooth progress of the downstream production process. Only after ensuring that the silica sand is completely dry can the production efficiency be maximized and the quality of the final product be guaranteed.

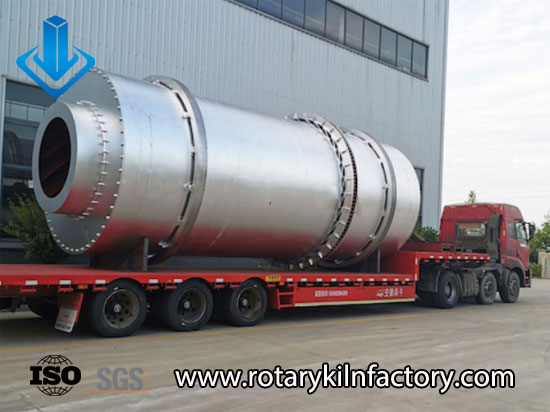

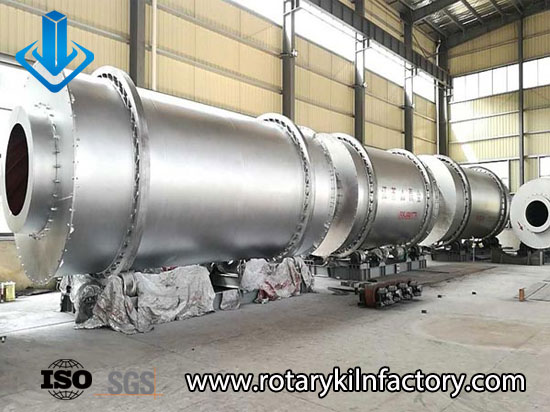

Design and Characteristics of Silica Sand Dryer
Core design features
Precise temperature control
The silica sand dryer is equipped with a temperature control system designed specifically for silica sand, ensuring that the temperature is always in the optimal range during the drying process. Usually, the drying temperature is controlled between 100℃ and 200℃, which can effectively remove moisture while avoiding excessive temperature that damages the particle structure of the silica sand. The multi-point temperature monitoring system monitors the temperature distribution within the equipment in real-time to ensure that the temperature in each area is uniform. This avoids local overheating or insufficient drying and further improves the drying efficiency and overall quality of the silica sand.
Prevent impurities from mixing
To ensure the cleanliness of silica sand during the drying process, the dryer adopts an efficient sealing design, which can effectively prevent external impurities, dust, and other pollutants from entering the equipment, ensuring that each grain of sand is dried in a pollution-free environment.
In addition, the internal and external materials of the silica sand dryer are made of highly corrosion-resistant stainless steel or anti-corrosion coating, which not only ensures the durability of the equipment itself but also keeps the inside and outside of the equipment clean during long-term use, avoiding any contamination by impurities.
Technical Parameters of Silica Sand Dryer
| Capacity(t/d) | Initial moisture(%) | Finished moisture(%) | Total power(kw) | Floor area(㎡) |
|---|---|---|---|---|
| 300 | 20-30 | ≤5 | 130 | 42×16 |
| 500 | 20-30 | ≤5 | 150 | 46×16 |
| 800 | 20-30 | ≤5 | 200 | 48×16 |
| 1000 | 20-30 | ≤5 | 250 | 51×16 |
| 1300 | 20-30 | ≤5 | 280 | 52×18 |
| 1500 | 20-30 | ≤5 | 330 | 55×18 |
| 1800 | 20-30 | ≤5 | 380 | 56×18 |
| 2200 | 20-30 | ≤5 | 450 | 58×18 |
| 2700 | 20-30 | ≤5 | 560 | 60×18 |
| 3000 | 20-30 | ≤5 | 660 | 60×18 |
Difference from Other Material Dryers
Optimized cleaning and maintenance design
Silica sand has high requirements for cleanliness, so the dryer designed for silica sand has unique optimization in cleaning and maintenance. The equipment adopts a convenient disassembly and cleaning design, which allows operators to easily perform regular maintenance, reducing cleaning time and maintenance costs, thereby increasing the service life of the equipment.
Precisely control moisture emission
The silica sand dryer is equipped with an advanced moisture emission system that can accurately control the amount of moisture emitted to prevent excessive evaporation of moisture from adversely affecting the particle size and performance of silica sand. Fine moisture management, ensures that each silica sand can achieve the best drying effect and avoids changes in particle morphology caused by too fast or too slow evaporation of moisture during the drying process.
Energy efficiency optimization
Due to the large demand for heat during the drying process of silica sand, it is particularly important to optimize the energy efficiency of the equipment. Adopt an advanced heat energy recovery system to minimize heat waste and improve heat energy utilization. Compared with other types of dryers, silica sand dryers have superior energy efficiency and can significantly reduce operating costs and energy consumption.
Adaptable to various scales of production
Silica sand dryers are available in a variety of specifications and models to meet the needs of small and medium-sized enterprises to large-scale industrial production. Whether it is a small-scale production with a daily processing capacity of only a few tons or a large-scale industrial production that can process dozens of tons of silica sand, it can be achieved by choosing different models of dryers. For different production scales, the design and configuration of the equipment can be flexibly adjusted to ensure that every production demand can be met.
